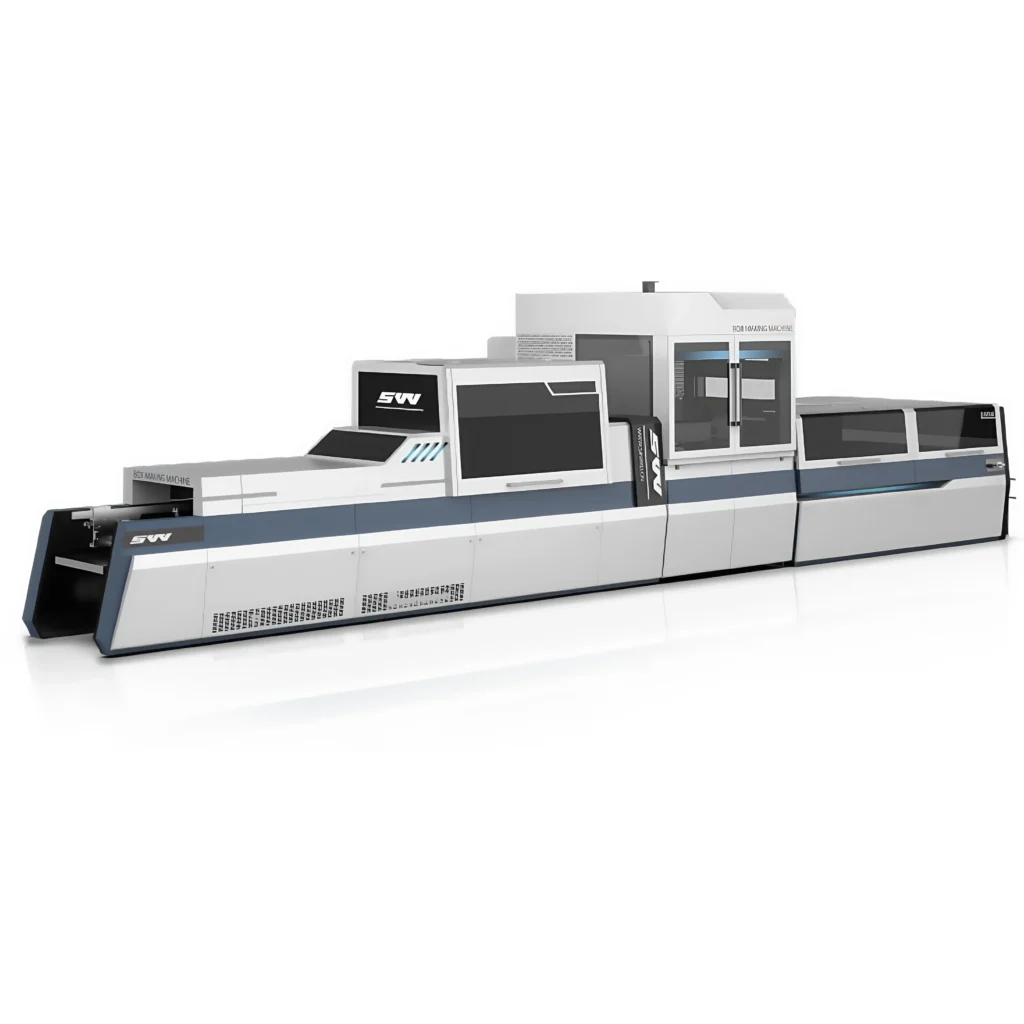

The S 18Y Fully Automatic Multifunction Gift Box Making Machine is designed for high-precision, efficient production of high-quality gift boxes. Capable of handling paper lengths from 190 mm to 1030 mm and widths from 110 mm to 630 mm, this machine processes paper thicknesses ranging from 80 to 200 g/m² and cardboard thicknesses of 0.8 to 3 mm. It can handle a variety of box sizes, with edge folding depths ranging from 10 mm to 125 mm, making it ideal for different packaging applications.
This Gift Box Making Machine incorporates advanced features like PLC control, ensuring easy operation and precise positioning with an accuracy of ±0.1 mm. Operating at speeds of up to 18 sheets/min, the S 18Y is perfect for high-volume production, allowing manufacturers to streamline their processes and significantly improve productivity. With its robust design and high-quality output, the S 18Y is the ultimate solution for businesses looking to produce elegant and durable gift packaging.
| Parameter | Specification |
|---|---|
| Cover length | 180-1000 mm |
| Cover width | 80-600 mm |
| Cardboard thickness | 1-3 mm |
| Min width of spine | 8 mm |
| Speed | 0-30 pcs/min |
| Box size | Max: 450mm / 350mm / 150mm, Min: 100mm / 60mm / 15mm |
| Cardboard thickness | 0.8-3 mm |
| Edge folding depth | Min: 10 mm, Max: 150 mm |
| Fold ear depth | 10 mm |
| Production speed | ≤ 18 sheets/min |
| Length of paper | 190-1030 mm |
| Width of paper | 110-630 mm |
| Thickness of paper | 80-200 g/m² |
| Position precision | ±0.1 mm |
| Power | 20 kW |
| Weight | 7000 kg |
| Dimension | L11000 × W5000 × H2800 mm |
