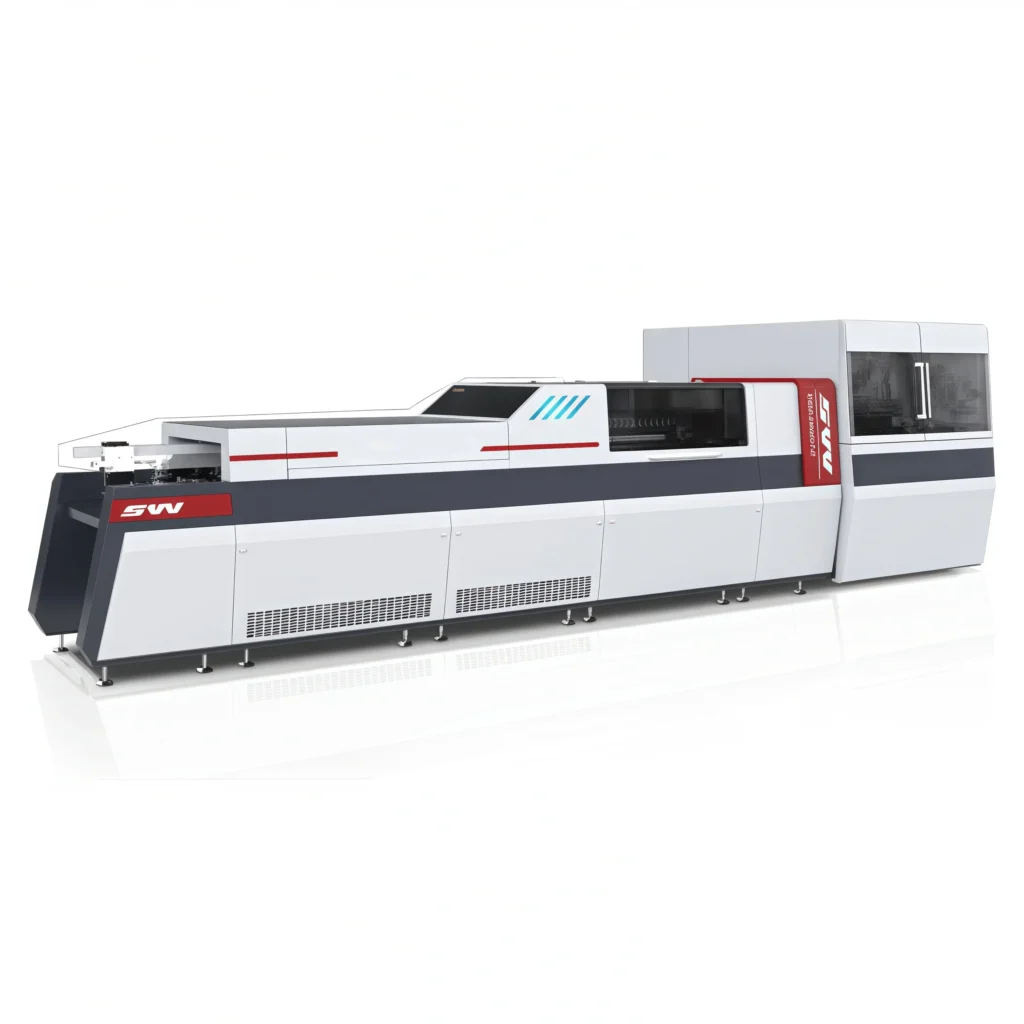

The QZD-600W Automatic Collapsible Box Side Wings Making Machine is an advanced solution for efficiently producing collapsible boxes with side wings. It is designed for high precision and productivity, handling paper lengths from 190 mm to 1030 mm and widths from 100 mm to 460 mm. Capable of processing paper thicknesses between 80–200 g/m² and board thicknesses of 1–3 mm, this machine also manages side plate thicknesses of 0.5–3 mm and side wings lengths of 150–800 mm, offering versatility for a range of box sizes.
The Collapsible Box Side Wings Making Machine ensures accuracy with positioning precision of ±0.25 mm, and operates at speeds of up to 35 pcs/min, making it ideal for high-volume production. It significantly reduces manual labor and enhances efficiency, delivering consistent results with every cycle. Whether used for packaging in industries such as logistics, retail, or manufacturing, the QZD-600W provides a reliable, cost-effective solution for producing high-quality collapsible boxes with side wings.
| Main Technical Parameter | QZD-600W |
|---|---|
| Length of paper | 190-1030 mm |
| Width of paper | 100-460 mm |
| Thickness of paper | 80-200 g/m² |
| Thickness of board | 1-3 mm |
| Side plate thickness | 0.5-3 mm |
| Side wings length | 150-800 mm |
| Side wings width | 40-200 mm |
| Position precision | ≤ ±0.25 mm |
| Speed | 0-35 pcs/min |
| Weight | 4000 kg |
| Dimension | L8700 × W2600 × H1750 mm |
