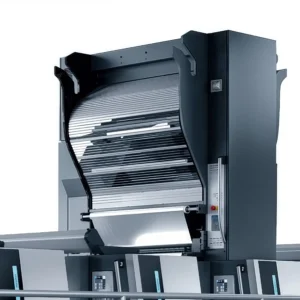

The LeapFoiler Cold Transfer Peripheral Unit is designed for high-efficiency cold transfer finishing, widely used in labels, packaging, and high-quality commercial printing. The system enables metallic effects on various substrates, enhancing the visual appeal and added value of printed products. The LeapFoiler offers flexible use of one to six transfer webs, optimizing the production process based on specific needs. Whether for traditional UV or LED UV printing applications, the LeapFoiler ensures superior performance, significantly reducing setup times and increasing production efficiency with inline finishing technology. The machine is efficient, cost-effective, and delivers high-quality metallic gloss and stable production processes, making it ideal for large-scale, high-quality metallic effect production.
| Model | Cold Transfer Peripheral Unit |
|---|---|
| Applicable Paper | Based on the printing parameters of flexo printing |
| Applicable Other Materials | PET |
| Cold Foil Width Range | 100mm ~ 970mm |
| Cold Foil Thickness | Supports 6um cold foil |
| Roll Width | 350mm (Maximum 550mm customizable) |
| Cold Foil Application | Supports both continuous & step printing |
| Foil Division | Supports |
| Foil Quantity | 2-5 rolls |
| Simultaneous Production of Different Rolls | Can be produced at the same time |
| Foil Mode | Vacuum suction mode |
| Electric Core Size | 3 inches |
| Roll Change Mode | No need for long airshaft |
| Maximum Continuous Cold Foil Speed | 12000 sheets/hour |
| Whole Cold Press Speed | 10000+ sheets/hour @ 2cm |
| Roll Change Speed | 10000+ sheets/hour @ 2cm |
| Roll Shaft | >20mm |
| Power | 15KW |
| Energy Requirements | 0.6Mpa 1.5m³/min |
