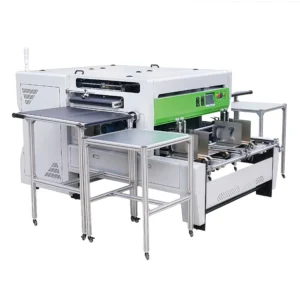

The HR-1000C/1300C Slotting Machine is a versatile and efficient solution designed for precise slitting of cardboard and other materials. Available in 1000mm and 1300mm models, this machine offers adjustable slot angles ranging from 80° to 140°, ensuring optimal results for various packaging applications. Its high-speed capabilities of up to 100 meters per minute and precision of 0.10mm make it ideal for high-volume production environments. This slotting machine is perfect for industries requiring reliable and efficient cardboard processing.
| Model | 1000C Model | 1300C Model |
|---|---|---|
| Minimum Paper Size | 100*130mm | 100*130mm |
| Maximum Paper Size | 650*930mm | 650*1230mm |
| Slotting Angle | 80°-140° Adjustable | 80°-140° Adjustable |
| Lateral Length | 1465mm | 1465mm |
| Max Speed | 80-100m/min (300*300mm) | 80-100m/min (300*300mm) |
| Normal Speed | 60-80m/min (300*300mm) | 60-80m/min (300*300mm) |
| Precision | 0.20mm | 0.10mm |
| Material Thickness | 0.6mm-4.0mm | 0.6mm-4.0mm |
| Power | 5.5kw | 5.5kw |
| Equipment Features | ||
|---|---|---|
| Main Slitting Size | Φ600*1000mm | Φ600*1000mm |
| First Slotting Quantity | 4 pieces | 4 pieces |
| Second Slotting Quantity | 4 pieces | 4 pieces |
| Four-sided Cleaning | With side conveyor for cleanup | With side conveyor for cleanup |
| Equipment Dimensions and Weight | ||
|---|---|---|
| Machine Dimensions (LWH) | 280016501670mm | 280016501670mm |
| Packaging Dimensions (LWH) | 295018001820mm | 295018001820mm |
| Total Weight | 1500kg | 1500kg |
| Total Weight with Packaging | 1830kg | 1830kg |
