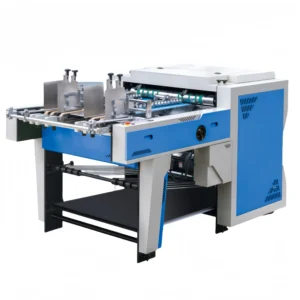

The HR-1000A Drum Type Slotting Machine is a high-performance machine designed for the efficient slotting of various materials such as cardboard. With adjustable slotted angles between 80° to 140°, this machine delivers precise cutting with a high-speed output of up to 32 meters per minute. Ideal for the packaging industry, the Slotting Machine provides great flexibility in handling a range of materials, from paperboard to thick cardboard, offering superior efficiency and reliable performance. Its robust design ensures longevity and accuracy, making it a valuable tool for businesses seeking improved production rates and precision.
| Parameter | Specification |
|---|---|
| Minimum Material Size | 120*130mm |
| Maximum Material Size | 550*930mm |
| Slot Width | 920mm |
| Opening Angle | 80°-140°, Adjustable |
| Maximum Speed | 10-32m/min (300*300mm), Approx. 150 sheets/min |
| Normal Speed | 20-25m/min (300*300mm), Approx. 130 sheets/min |
| Precision | Normal: 0.20mm, Max: 0.10mm |
| Material Thickness | 0.6mm – 4.0mm |
| Total Power | 2.2kw |
| Coating Width | Φ600*1000mm |
| First Slotting Path Count | 4 paths |
| Second Slotting Path Count | 4 paths |
| Machine Dimensions (LWH) | 240015001500mm |
| Packaging Dimensions (LWH) | 255016501750mm |
| Machine Weight | 1500kg |
| Packaging Weight | 1850kg |
