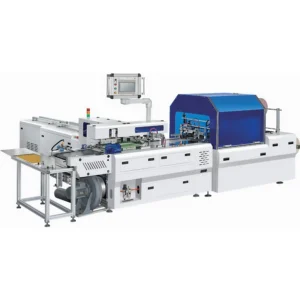

The FZ-120 mini automatic bagging machine is a compact, high-efficiency packaging solution designed for businesses seeking to automate small to medium-sized product packing. This mini automatic bagging machine integrates three essential functions: collation, bag making, and bagging. With a built-in collation feature, it can automatically group multiple items into a single bag according to custom settings. The machine also supports in-line bag making, reducing costs by eliminating the need for pre-made bags. Operated by a PLC servo motor system and equipped with optional functions like gluing, ultrasonic sealing, and punching, the FZ-120 mini automatic bagging machine guarantees speed, precision, and flexibility in production. It is ideal for packaging stationery, stickers, cards, manuals, and flat items, with a packing speed of up to 70 bags per minute. The user-friendly structure and fully automated workflow make it an excellent choice for replacing manual packaging in small production spaces.
Technical parameters: FZ120 Automatic Minimal Bagging Machine | ||
Max speed | 40-70(bag/min) | |
Max size of packing | 125mm×300mm | |
Min size of packing | 58mm×70mm | |
Thickness of packing | 2-20mm | |
Film thickness | 0.04-0.06mm | |
Max.diameter of film | 420mm | |
OPP film specification | Max:129mm×300mm | |
Min:62mm×70mm | ||
Motor power | 8Kw | |
Machine weight | 2200Kg | |
Dimension of machine | 4500mm×3200mm×1650mm | |
Total pocket width of both sides | ±7-8mm |
