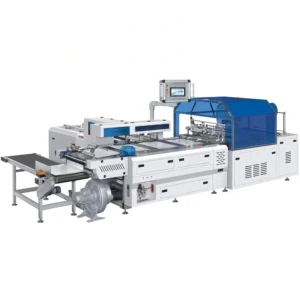

The FZ-310 mid-large bagging machine is a high-capacity, automated solution engineered for packaging large-format paper goods such as A4 documents, certificates, comic books, manuals, brochures, envelopes, and hardcover notebooks. With integrated functions like collation, bag making, and automatic bagging, this mid-large bagging machine improves packaging efficiency and reduces labor intensity. Its multi-axis PLC servo system ensures precise positioning, stable output, and flexible size adjustments, supporting packing dimensions up to 300 × 420 mm. Optional features such as gluing, ultrasonic sealing, and punching enhance the versatility of packaging operations. Operating at 20–40 bags per minute, the FZ-310 is ideal for mid- to high-volume production lines seeking reliable, consistent, and professional packaging performance for oversized flat items.
| Technical parameters:FZ-310 | |
| Max speed | 20-40(bag/min) |
| Max size of packing | 300×420mm |
| Min size of packing | 150×150mm |
| Thickness of packing | 2-30mm |
| Film thickness | 0.03-0.06mm |
| Max.diameter of film | 420mm |
| OPP film specification | (Max):330×420mm |
| (Min):158×150mm | |
| Motor power | 8Kw |
| Machine weight | 2300Kg |
| Dimension of machine | 4500×3200×1650mm |
| Total pocket width of both sides | ±7-8mm |
